现货供应 IRFZ44N IR
- 产品价格:
- 面议/ 1pcs
- 交易说明:
- 本站所有价格仅供参考,网上订单需书面确认后生效,期盼您来函来电。
- 厂 家:
- IR
- 封 装:
- TO-220AB
- 批 号:
- 12+
- 数 量:
- 50000
产品咨询直线:021-38046966
产品详细说明
全新原装现货库存,量大从优
品牌: | IR | 型号: | IRFZ44N |
种类: | 绝缘栅(MOSFET) | 沟道类型: | N沟道 |
导电方式: | 耗尽型 | 用途: | SW-REG/开关电源 |
材料: | N-FET硅N沟道 |

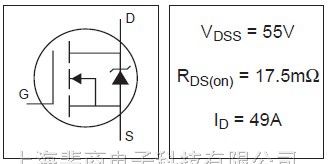

基本参数:
晶体管极性:N渠道
晶体管数:1
晶体管类型:MOSFET
漏极电流,Id最大值:49A
电压,Vds最大:55V
开态电阻,Rds(on):0.024ohm
电压,Vgs最高:2.1V
功耗:83W
封装类型:TO-220AB
针脚数:3
器件标记:IRFZ44NPBF
引脚节距:2.54mm
满功率温度:25°C
热阻,结至外壳A:1.8°C /W
电流,Id连续:41A
电流,Idm脉冲:160A
表面安装器件:通孔安装
针脚格式:1 g
阈值电压,Vgs th典型值:4V
l Advanced Process Technology
l Ultra Low On-Resistance
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
Description
Advanced HEXFET® Power MOSFETs from International
Rectifier utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET power MOSFETs are well
known for, provides the designer with an extremely efficient
and reliable device for use in a wide variety of applications.
The TO-220 package is universally preferred for all
commercial-industrial applications at power dissipation
levels to approximately 50 watts. The low thermal
resistance and low package cost of the TO-220 contribute
to its wide acceptance throughout the industry.
