供应AR8032,ATHEROS AR8032,保证原装正品
产品详细说明
产品基本参数
型号：AR8032
制造商：ATHEROS
批号：1124
产品说明
The AR8032 is a highly integrated Fast Ethernet physical layer device that transmits and receives high-speed data over standard category 5 (CAT 5) unshielded twisted pair cable. It is compliant with 100Base-TX and 10Base-T IEEE 802.3 standards.
The AR8032 uses advanced mixed-signal processing technology to integrate functions such as adaptive equalization and timing recovery and delivers substantial power savings and operation in noisy environments.
The AR8032 supports the Media Independent Interface (MII) and Reduced Media Independent Interface (RMII) for direct connection to a Fast Ethernet-capable MAC.
The AR8032 supports the Atheros Cable Diagnostic Test (CDT) feature, which uses Time Domain Reflectometer technology to quickly and remotely identify potential cable malfunctions without deploying field support personnel or bringing down the network.

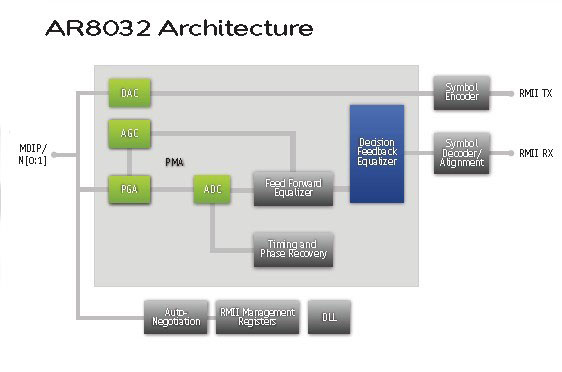

产品结构
......
